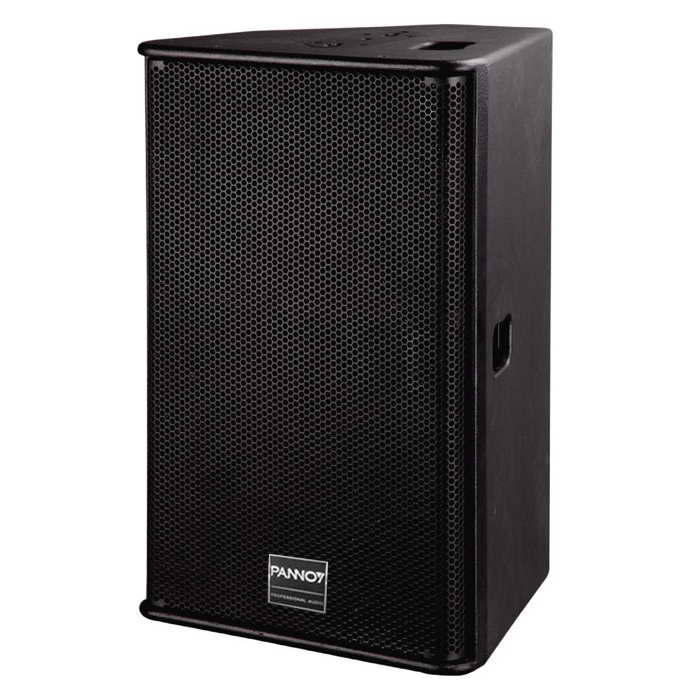

PANNOY Public Address System-PA15H 15 inch Two Way Full Range Loudspeaker

PA15H 15 inch Two Way Full Range Loudspeaker

Descriptions

PA series loudspeaker system is specially designed to medium and small scale sound reinforcement and flow performance. They are dynamic and powerful with delicate and fashionable appearance. PA15H is a two-way, full range loudspeaker system. It features a high efficient 15”woofers with 4 inch (100mm) voice coil and one 3” compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, halls, discos, conference rooms, auditoriums, outdoor performance, stadia and arenas, etc.

Specifications

Model: PA15H

Type: 15 inch Two Way Full Range Loudspeaker

Power Handling(RMS/PEAK): 700W/1400W

Nominal Impedance: 8Ω

Frequency Response: 48Hz-19kHz(±3dB)

Sensitivity (1W/1M): 99dB

Maximum SPL(1M): 129dB

Coverage Patterns(H×V): 90°x50°

LF Section: 15" (381mm) woofer, 4" (100mm) voice coil

HF Section: 3"compression driver

Input Connectors: 2xNL4MP Speakon
