PA-T12M 10 Zone Monitor Panel

Descriptions

This equipment is used to monitor/listen the audio output status of PA-T13D(12 Zone Speaker Selector) or amplifier. It can monitor up to 10 speaker zones.

Features

●Can monitor 10 zones

●Built-in hifi monitor speaker with volume controller

●Audio signal can be output to external speaker

Specifications

Model	PA-T12M
Monitor Zone	10 zones
Input	70-100V
Output	60dB
Frequency Response	100Hz - 15KHz
S/N Ratio	>80dB
Monitor speaker	Built-in hifi specker
Controls	Power switch,zone selector,monitor volume controller
LED Indicators	Power LED
Protection	AC fuse 1A
Power Requirements	110/220V±10%,50/60Hz
Power Consumption	20W
Dimensions (W×D×H)	483×320×88mm
Weight	6Kg

Specifications and design are subject to change without notice

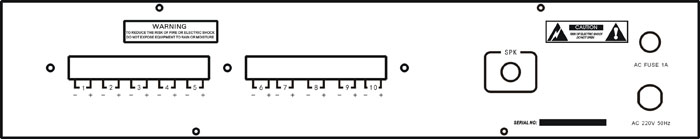

Rear Panel
