PANNOY Public Address System

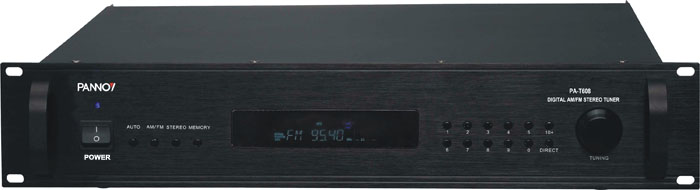

PA-T608  Digital AM/FM Stereo Tuner
PA-T608 Digital AM/FM Stereo Tuner
Descriptions
●AM/FM stereo bands are optional

●Can search station and store to memory automatically and manually

●Can store 40 AM and 40 FM stations.

●Direct station selection by inputting frequency

●VFD display and soft-touch button operation

Specifications

 Model

 PA-T608

 Output

 775mV

 Frequency Range

 FM:87.0-108.0MHz ; AM:522-1620kHz

 S/N Ratio

 FM:70dB;AM:50dB

 Tuning Step

 FM:0.1MHz;AM:9kHz

 THD

 Less than 0.1%

 Controls

 Power switch, "AUTO","AM/FM ","STEREO ","MEMORY ","DIRECT " and number buttons,"TUNING" knob

 LED Indicators

 Power LED

 Protection

 AC fuse 1A

 Power Requirements

 110/220V±10%,50/60Hz

 Power Consumption

 10W

 Dimensions (W×D×H)

 483×320×88mm

 Weight

 7.5Kg

  Specifications and design are subject to change without notice

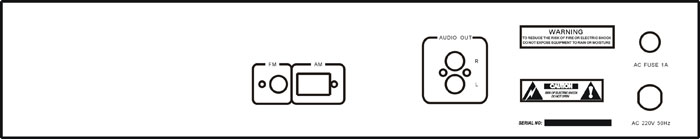

Rear Panel
back
